PowerBay 10kW Single Phase Grid Tie Inverter 3MPPT
Supports 150% PV oversizing & bifacial modules for max solar yield. Safe, durable & easy to install for home & small commercial PV systems.
🔍
ASW10000-S-A
10kW Single Phase Grid Tie Inverter 3MPPT
solar inverter unit for rooftop PV panel system
grid tie solar power inverter Australia residential
  1. ASW10000-S-A

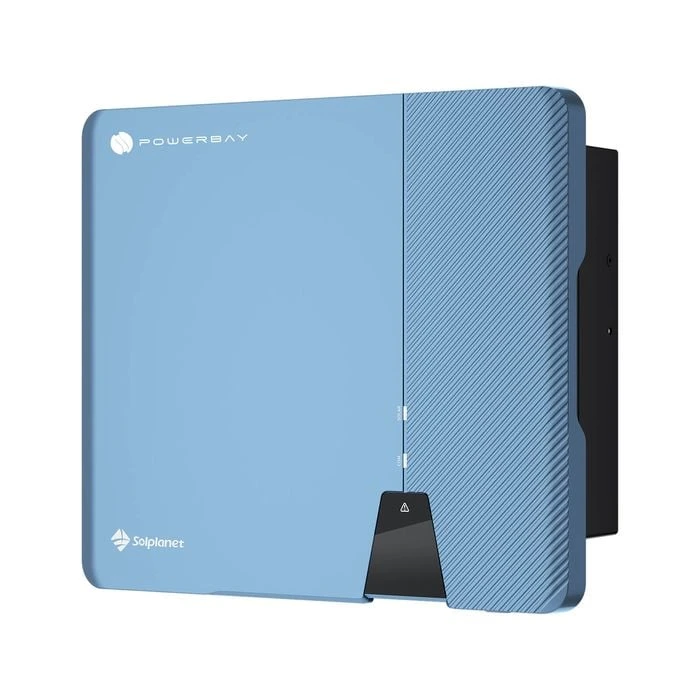

  2. 10kW Single Phase Grid Tie Inverter 3MPPT

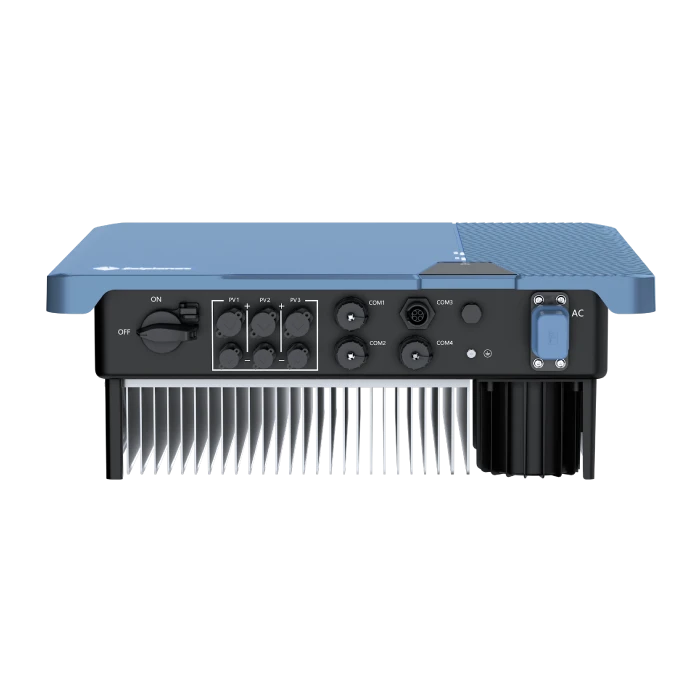

  3. solar inverter unit for rooftop PV panel system
  4. grid tie solar power inverter Australia residential

PowerBay 10kW Single Phase Grid Tie Inverter 3MPPT

I/N: 0958274

$1,099.00

  • Superior Safety & All-Weather Reliability:Built to strict international quality and safety standards, this IP66-rated inverter delivers durable performance for both indoor and outdoor use.
  • Optimized Power Generation & Flexible PV Compatibility:Featuring 3 independent MPPT trackers, the inverter supports multi-directional PV layouts for all roof orientations.

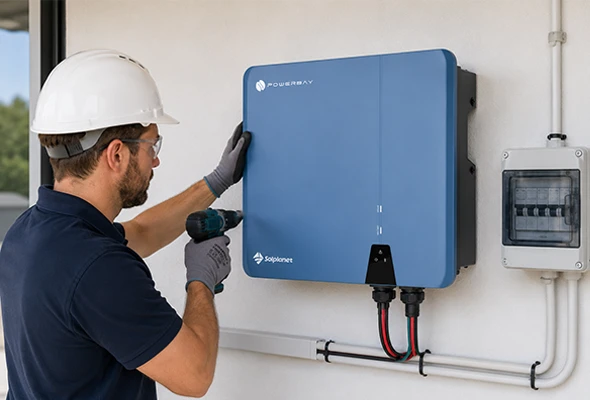

  • Effortless Installation & Smart Commissioning:Equipped with standard Phoenix Contact DC connectors for fast, simple tool-based installation.
  • Stable Long-Term Operation & Low Maintenance:Adopting premium industrial-grade components, the inverter resists dust, moisture and temperature changes.
  • 编组 51 Free Australia-wide shipping on selected products
  • 编组 51 48-hour fulfilment from nearby local warehouses.
  • 编组 51 Australian technical support & manufacturer warranty.
    *Exceptions for weekends and public holidays.

Quick Install Guide

Trust Layer

Meets Australian standards STC eligible (rebates available)

IEC 62109
IEC 62109
IEC 62116
IEC 62116
IEC 61727
IEC 61727
IEC 61683
IEC 61683
IEC 60068
IEC 60068
IEC 61000
IEC 61000
CE

Technical Specifications

ItemSpecification
Max.PV array power15000 Wp STC
Max.input voltage600V
MPP voltage range/rated input voltage80V-560V/360 V
Min.input voltage80V
Initial.feed in voltage100V
Max.operating input current16 A
Max.short circuit current22.5A
Max.efficiency/European efficiency97.7 %/97.3%
Operating temperature range-25℃~60℃
Self-consumption(at night)<1W
Rated AC grid frequencyIP66

Packaging & Dimensions

Weight:18.0kg
 LengthWidthHeight
Unpacked Dimension503mm435mm183mm
Package Dimension595mm525mm326mm

Delivery& Installation

If installation services are required, our team can assist in arranging qualified installers for your project.

Orders are typically dispatched the next business day (subject to stock availability and order timing), with final delivery schedules confirmed upon order.

Disclaimers

1.Actual inverter performance, including but not limited to conversion efficiency, output power, maximum PV input capacity and backup runtime, may vary depending on ambient temperature, solar irradiance, load conditions, wiring layout, battery matching status and local environmental factors.

2.Installation, wiring, commissioning and regular maintenance must be completed by certified electrical professionals, fully complying with local electrical codes, safety standards, grid connection regulations and official manufacturer operation guidelines.

3.All product specifications, exterior design, technical parameters and functional features are subject to revision without prior written notice for ongoing product optimization and technical upgrade.

4.Any damage, equipment malfunction, grid fault, fire risk or safety hazard caused by improper operation, unauthorized hardware/software modification, non-compliant installation, mismatched PV/battery accessories or violation of official safety instructions shall not be the liability of the manufacturer.

5.Stable output efficiency and long service life of the inverter can only be guaranteed when operated within the designated working, charging and storage temperature ranges. Extreme high/low temperatures, damp or dusty storage environment will degrade performance and shorten service lifespan.

6.Grid-tied inverter functions are subject to local power grid access policies; grid compatibility and feed-in power limits differ by region. The manufacturer does not guarantee unrestricted grid connection in all areas.

7.System energy yield calculation data shown on the display or monitoring platform is for reference only. Actual power generation will be affected by weather, shading, component aging and seasonal sunlight changes, which shall not constitute a product performance warranty basis.

8.The warranty coverage excludes failures induced by lightning strike, flood, thunderstorm, unstable grid voltage, man-made damage, long-term overload operation or use beyond the rated parameter limits.
