Durable Construction Installation Kit
Black Tile Kit 30/35mm For 8 Solar Panels
Made of premium AL6005-T5 anodized aluminum and SUS304 stainless steel, this solar mount kit features excellent corrosion resistance, rust-proof performance and long-lasting durability.
🔍
Black Tile Kit

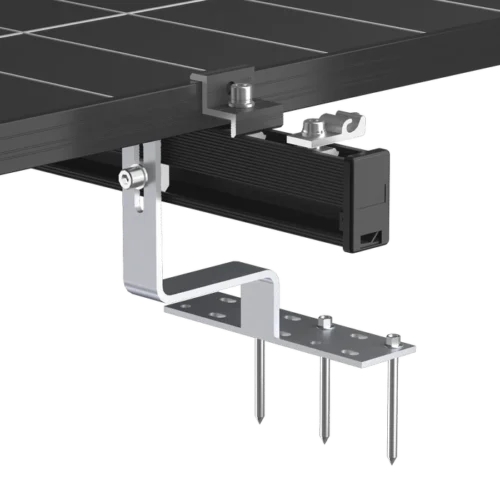

TILE ROOF KIT

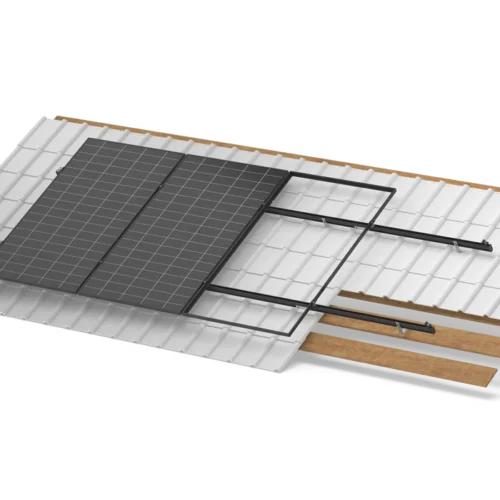

solar panel install Mounting systems
Black Tile Kit 30/35mm
  1. Black Tile Kit
  2. TILE ROOF KIT
  3. solar panel install Mounting systems
  4. Black Tile Kit 30/35mm

Black Tile Kit 30/35mm For 8 Solar Panels

I/N: 0959941

$114.44

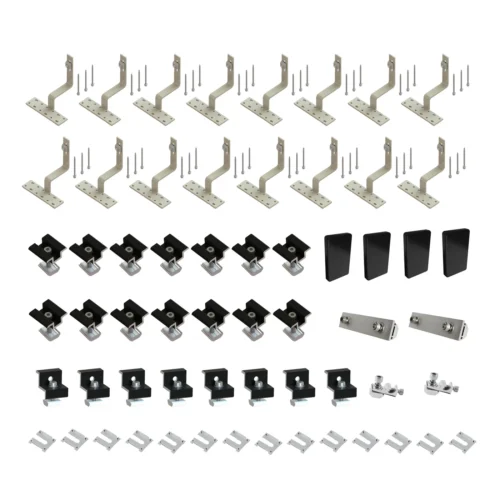

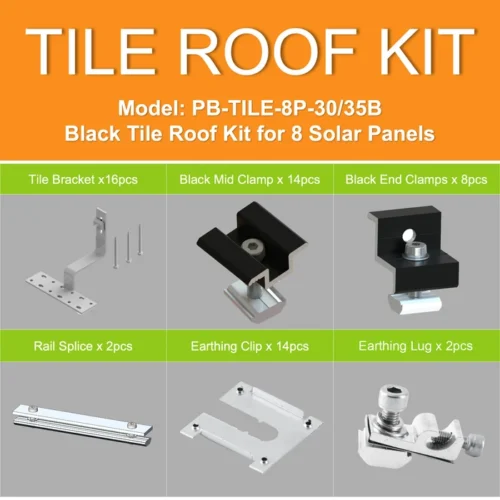

  • Complete Installation Kit for 8 Solar Panels on Tile Roof: Includes all essential components – 16 x tile hook brackets, 14 x black mid clamps, 8 x black end clamps, 2 x grounding lugs, 2 x rail joiners, 14 x earthing clips, 4 x rail end caps, providing a fully integrated, reay-to-install solution.
  • High-Strength Aluminum & Stainless Steel Materials: Constructed from corrosion-resistant AL6005-T5 aluminium and SUS304 stainless steel, the tile kit ensures durability and resistance to rust.
  • Black Anodized Finish: The black anodization not only enhances visual appeal but also improves weather resistance, perfectly matching black-framed solar panels and balck solar rails for an elegant look
  • Superior Structural Stability: Precision-designed to withstand high wind loads, compliant with AS/NZS 1170.2 standards — ensuring long-term system safety and performance.
  • 编组 51 Free Australia-wide shipping on selected products
  • 编组 51 48-hour fulfilment from nearby local warehouses.
  • 编组 51 Australian technical support & manufacturer warranty.
    *Exceptions for weekends and public holidays.

Technical Specifications

ItemSpecification
MaterialAluminium 6005-T6 & SUS 304

Dimensions

Weight:3.12kg
 LengthWidthHeight
Dimension200mm265mm112mm

Delivery & Installation

If installation services are required, our team can assist in arranging qualified installers for your project.

Shipment
Orders are typically dispatched the next business day (subject to stock availability and order timing), with final delivery schedules confirmed upon order.

Disclaimers

1.Actual load-bearing performance and corrosion resistance may vary depending on installation conditions, roof type, geographic location, and environmental factors such as coastal salt exposure or extreme weather.

2.Installation must be carried out by qualified professionals in accordance with local building codes, safety regulations, and the manufacturer’s installation guidelines.

3.Product specifications, dimensions, and appearance are subject to change without prior notice for continuous product improvement.

4.Improper installation, unauthorised modification, or failure to follow technical instructions may compromise structural integrity, void the warranty, and result in safety risks. The manufacturer shall not be held liable in such cases.
